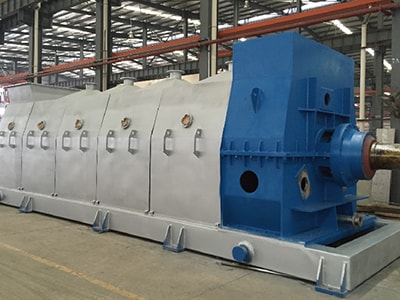

Screw Pulp Press Washer
Screw Pulp Press Washer
The screw pulp press washer is mainly used in waste paper recycling and paper making industries. With reliable quality, easy operation and simple maintenance, this press washer is very popular with customers from many countries, like Pakistan and the Philippines, to name a few.
Specifications of Screw Pulp Press Washer
| Model | ZNV1 | ZNV2 | ZNV3 | ZNV4 | ZNV5 | ZNV6 | ZNV7 | ZNV27 | ZNV28 | |
| Screw Dia (mm) | Ф 300 | Ф 350 | Ф 400 | Ф 450 | Ф525 | Ф600 | Ф700 | Ф700 | Ф800 | |
| Inlet Consistency (%) | 10~12 | 6~8 | ||||||||
| Outlet Consistency (%) | 28~32 | 30~32 | ||||||||
| Air Compression Pressure (Mpa) | 0.2~0.8 | |||||||||
| Capacity (t/24h) | OCC | 25~30 | 30~40 | 50~60 | 60~80 | 80~100 | 110~150 | 180~220 | 180~220 | |
| Deinking Pulp | 15~20 | 25~30 | 40~50 | 50~60 | 60~80 | 90~120 | 130~150 | 130~150 | 150~180 | |
| Motor Power (KW) | OCC | 22 | 30 | 37 | 45 | 55 | 75 | 110 | 110 | |
| Deinking Pulp | 18.5 | 22 | 30 | 37 | 45 | 55 | 90 | 90 | 110 | |
