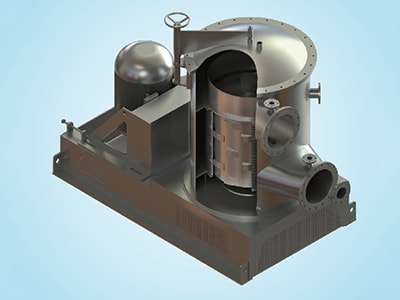

Pressure Screen (Outflow Type), ZSR Series

Pressure Screen (Outflow Type), ZSR Series

The pressure screen (outflow type) mainly applies to precise screening of various kinds of stock. With reliable quality and competitive prices, this pulp screen is widely used in waste paper recycling, paper making industries, and is favored by customers from many countries like Panama, Ecuador and Saudi Arabia.

Features
1. The pressure screen (outflow type) features simple structure, easy operation, large production capacity, low energy consumption and low operating cost.
2. The screen frame is of high strength, so its service life is long.
3. The rotor's special design makes it easy to clean the screen slot.
4. The impact time of the pulse is extended to ensure continuous operation of the machine.
5. The stock can be mixed during screening so that the stock consistency won't be increased.
6. The pressure screen (outflow type) is very effective in screening impurities, especially objects with glues.

Specifications of Pressure Screen (Outflow Type), ZSR Series
Model Max. Capacity (t/24h) Design Consistency (%) Slot Size (mm) Motor Power (KW)
ZSR61 10 ~ 23 1.2 0.15 ~ 0.3 22
ZSR62 20 ~ 40 30
ZSR63 35 ~ 65 37
ZSR64 40 ~ 80 45
ZSR65 50 ~ 100 45
ZSR66 60 ~ 120 55
ZSR67 85 ~ 160 75
ZSR68 105 ~ 200 90
ZSR69 125 ~ 245 110
ZSR70 150 ~ 285 132
ZSR71 170 ~ 325 160
ZSR72 190 ~ 365 185
ZSR73 215 ~ 405 200
ZSR74 255 ~ 485 220
