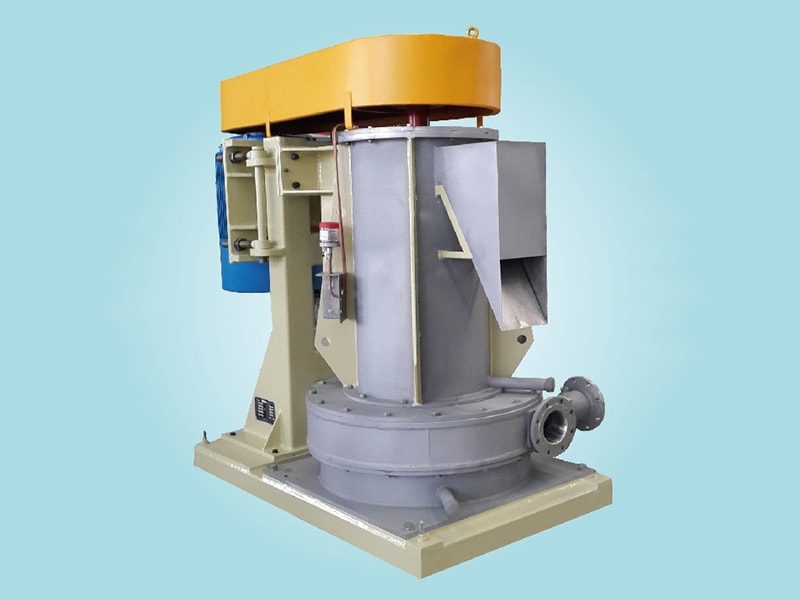

Combisorter, ZSM Series

Combisorter, ZSM Series
  • Combisorter, ZSM Series
  • Combisorter, ZSM Series
  • Combisorter, ZSM Series

    Application

    The ZSM series combisorter is used to screen impurities in pulp. It acts as a tailing screen of coarse screen in pulp preparation system, or functions as a reject sorter from fiber separator. It is one of the most advanced equipment sets with multi-function rejects screening for cleaner production and yield increase.

    Request a Quote
    Features
    • With combining the functions of deflaking and screening into one unit, this sorting machine can work with various kinds of pulp.
    • High quality in pulp screening and high efficiency in pulp recovery
    • Less space requirement with higher capacity
    • Convenient operation and easy in maintenance
    • Fiber is reduced to a minimum level.
    • And then coarse impurities are abandoned.
    Specifications
    Model Capacity (t/24h) Inlet Consistency (%) Hole Size (mm) Motor Power (KW)
    ZSM12
    30 ~ 40 2.5 bottom Φ 2.0,
    lower half Φ 2.2,
    upper half Φ 2.4
    75
    ZSM12
    50 ~ 70 90
    ZSM13
    80 ~ 100 132
    ZSM14
    110 ~ 140 185
