Pulp Thickener of Paper Making Machine

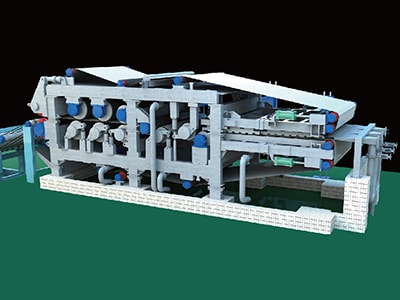

    1. Twin-Wire Press Washer
    2. Twin-Wire Press Washer The twin-wire press washer features lengthened pressure section, increased pressure difference, higher thickening ratio and stable outlet consistency (28% to 32%). The wedge-shaped dewatering filter plate and double pressing roll unit combine to dewater, giving the press washer the advantages of little loss of fibers and low energy consumption. Read More
    1. Multi-Disc Filter
    2. Multi-Disc Filter The multi-disc filter is widely used in waste paper recycling system and paper making industry.
      Through the filtering of white water, the recycling rate of fibers is pretty high.       Read More
    1. Screw Pulp Press Washer
    2. Screw Pulp Press Washer The screw pulp press washer is mainly used in waste paper recycling and paper making industries. With reliable quality, easy operation and simple maintenance, this press washer is very popular with customers from many countries, like Pakistan and the Philippines, to name a few. Read More
    1. Inclined Screw Thickener
    2. Inclined Screw Thickener The inclined screw thickener is used for thickening and washing all kinds of pulp, especially waste paper pulp. It can be used together with screw pulp press washer to reach the consistency required by the disperser. With the advantages of simple structure, large production capacity, good dehydration effect and easy maintenance, our inclined screw thickener is increasingly used in the waste paper recycling and papermaking industries. Read More
    1. Disc Thickener
    2. Disc Thickener Disc thickener is compact and efficient.
      The disc sector is welded by stainless steel so that it has good resistance to corrosion and is easy to take apart.       Read More
    1. Cylinder Wire Thickener, ZNW Series
    2. Cylinder Wire Thickener, ZNW Series This series of cylinder wire thickener is crucial for the concentration and washing of low-consistency pulp in the papermaking process. It operates with an inlet pulp consistency of 0.5% to 1% and can increase the consistency to between 4% and 6% depending on the type of pulp being processed. Read More
    1. High Speed Washer / Thickener
    2. High Speed Washer / Thickener The high speed washer / thickener is used to wash and thicken deinking stock like waste newspaper pulp, account book paper pulp, office waste paper pulp etc., which can remove very small impurities, such as ink and padding, from the pulp. This machine is widely applied in the waste paper recycling and paper making industries. Read More
    1. Drum Thickener
    2. Drum Thickener The drum thickener is used for washing and thickening low consistency stock in waste paper recycling and paper making industries. The machine has the features of simple structure, easy operation and repair, good function of dehydration and wide range of application. Read More
    1. Two Stage Pulp Washer
    2. Two Stage Pulp Washer The two stage pulp washer is mainly applied in waste paper recycling system and paper making industry. It is suitable to wash and thicken waste paper pulp and other types of pulp, especially waste paper deinking pulp. The machine can thicken pulp with the consistency of 0.55 percent into stock with the consistency of 8 percent. The two stage pulp washer is best for removing ink with the thickness of 1 to 100 micrometers. Read More
    1. Disc Thickener, ZNZ Series
    2. Disc Thickener, ZNZ Series The ZNZ series disc thickener is a vacuum multi-disc machine without water leg. It is applied for washing and thickening of various L.C. pulps. The product features its de-watering type similar to pump suction, so as to banish rigorous requirements on water leg installation by a traditional thickening machine. Read More
    1. Twin Screw Press
    2. Twin Screw Press The twin screw press, also called double spiral squeezer, is applied for black liquor extraction and thickening and de-watering of wood pulp, bamboo pulp, reed pulp, cotton stalk pulp, wheat straw pulp and waste paper pulp etc. Read More
    1. Inclined Screw Conveyor (Sedimator), ZTZ Series
    2. Inclined Screw Conveyor (Sedimator), ZTZ Series The ZTZ series inclined screw conveyor, also called sedimator, applies for processing heavy rejects discharged from H.C. cleaners and all screens, such as sand, nails, glass, stone and metal particles. It consists of the guiding device, drive device and other components. Read More

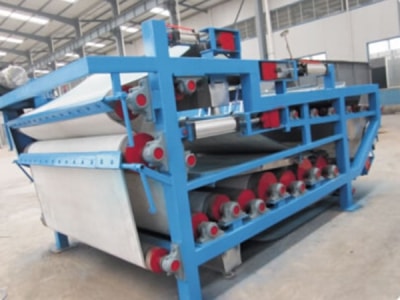

    1. Belt Filter Press / Thickener (for Sludge Handling System)
    2. Belt Filter Press / Thickener (for Sludge Handling System) The belt filter press is a kind of thickener for sludge handling system. It is a sludge dehydrator that transforms the processed sludge from low consistency to high consistency. Sludge is gradually dehydrated in different areas by means of gravity dewatering, wedge dewatering, swing dewatering, cut dewatering and other methods. Read More

Thanks for visiting our website! As an experienced pulp thicker and pulp washer manufacturer, we are able to offer an extensive line of products, including twin-wire press washer, screw pulp press washer, drum thickener, disc thickener, and more, which are widely used to wash and thicken all kinds of pulp. Some of these products are shown on this page, so you can click on the product you are interested in to find more detailed information.

In addition to pulp thickener of paper making machine, we also manufacture pulping machine, pulp screen, deinking machine, etc., to suit your different demands. In addition, we also offer OEM service to our customers. Due to their reliable quality and economical prices, our products are favored by customers in many countries including Pakistan, Ecuador, Panama, Peru, Thailand, Iran, Saudi Arabia, Egypt, the Philippines, Russia and Vietnam. We look forward to working with more global customers.
